Viewing Cell Relationships

Cell relationships show the relationship between sets of cell annotations within a single dataset as visualized with Sankey diagrams. This information is displayed only if a dataset has more than one cell labelset and does not show relationships for cell labels across datasets. The relationships are not hierarchical but represent the relationship between the cell labelsets; see the example below for how to view cell relationships.

From the Dataset Summary page, click on the Cell Labelset you wish to view the relationships of in the sidebar.

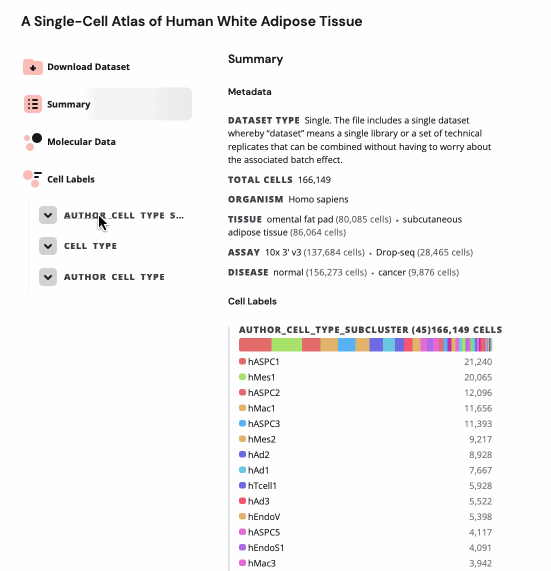

Selecting cell labelset and viewing cell relationships
